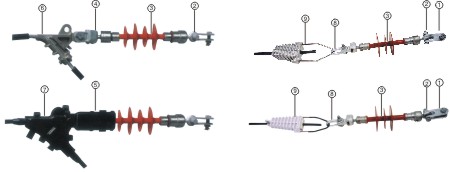

10kV overhead insulated line tension string device diagram (III) (IV)

Collect
商品说明
序号
No.		名称
Name		型号规格
Size		数量
No.
1U型挂环
Shackle		U-71
2双铁头瓷拉棒
Double iron-head porcelain pulling stick		SL-15/301
3双铁头瓷拉棒绝缘罩
Double iron-head porcelain pulling stick insulation cover		SL(Z)-15/301
4楔型耐张线夹
Strain clamp(wedge type)		NXL-(规格待选用)
NXL-(size choose)		1
5楔型耐张线夹绝缘罩
Strain clamp insulation cover		NXL-(规格待选用)
NXL-(size choose)		1
6自粘性绝缘带
Self-sticky insulation tape		J适量



(四) 高原型复合绝缘子耐张串

序号
No.		名称
Name		型号规格
Size		数量
No.
1直角挂板
Right angle hung plate		Z-71
2球头挂环
Ball-eye		QP-71
3高原型复合绝缘子
Insulator		HJII-10/701
4双联碗头挂板
Double-link socket-clevis eye		WS-71
5碗头挂板绝缘罩
Socket clevis-eye insulation cover		WS(Z)-71
6楔型耐张线夹
Strain clamp(wedge type)		NXL-(规格待选用)
NXL-(size choose)		1
7楔型耐张线夹绝缘罩
Strain clamp insulation cover		NXL-(规格待选用)
NXL-(size choose)		1
8U型挂环U-71
9自粘性绝缘带
Self-sticky insulation tape		J适量
