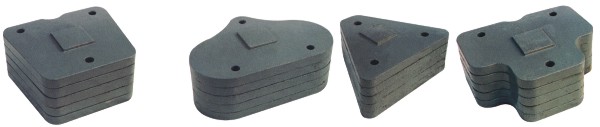

Heavy hammer plates (ZC, ZCQ, ZD, FZC types)

Collect
商品说明


型号
主要尺寸(mm)
重量
(kg)
L
L1
L2
H1
H2
b
Φ
ZC-18G
350
240
200
300
220
30
24
21.8
ZC-30
380
240
200
300
220
36
24
30.0


重锤片为灰铸铁件，涂漆。



型号
主要尺寸(mm)
重量
(kg)
L
L1
L2
H1
H2
b
Φ
ZCQ-22
440
240
170
250
165
32
24
22.0


重锤片为灰铸铁件，涂漆。



型号
主要尺寸(mm)
质量
(kg)
L
L1
H1
H2
b
Φ
ZD-20
450
240
300
220
30
24
21.8


重锤片为灰铸铁件，涂漆。



型号
主要尺寸(mm)
重量
(kg)
L
L1
L2
H1
H2
b
Φ
ZC-18
350
240
200
300
220
30
24
21.8


型号
主要尺寸(mm)
重量
(kg)
备注
L
L1
H1
H2
b
Φ
FZC-10
300
120
-
230
34
20
10
图(a)
FZC-20
390
240
220
325
30
24
20
FZC-30
400
325
290
390
33
26
30
图(c)
FZC-10Y
130
250
-
-
30
26
10
图(b)
FZC-15Y
-
-
-
-
38
280
15
图(d)


型号
主要尺寸(mm)
重量
(kg)
L
L1
b
M
FZC-25U
300
230
30
18
25
